CO₂ Contrast Agent Injector INSPECT 3005R
Contrast Agent CO2 Injector
For mobile C-arms, stationary DSA and hybrid operating rooms.
Its strengths and unique position features are:
- Gas preheatingg
- highest possible pressures and volumes
- high working speed
- most precise and accurate injection processes
Technical Data:
| Model | INSPECT 3005R |
| Intended Purpose | Angiography (DSA) |
| Contrast Agent | CO2 – Carbon dioxide |
| Klass /42/EWG Appendix II and MEDDEV | IIb |
| Presets | 10 |
| Keyboard | 10 Num / +7 Funktion Keys |
| Display | LCD 10,2 Zoll / 16 Mill. Colors |
| Technologies | ICF / DIT / MAX Range |
| Reload-Time with Gas heating | 2 sec |
| Injection Temperature | 36°C |
| Injection Volume | 0 ccm – 200 ccm |
| Injection Pressure | 0 mbar – 1400 mbar |
MAX RANGE
Largest range of pressure and volume
Over 30 years, it has been shown that for good visualization of large vessels, large pressure and large volume are important. For imaging small vessels, on the other hand, a small pressure and a small volume are important.
With MAX Range, we provide you injection parameters that have been proven and published in the literature.
Intelligent Continuous Flow
This ICF Technology is available exclusively from Malek Medical. This ICF Technology uses a patented and award-winning control technology. This ensures that a constant CO2 gas flow is generated during the entire injection. This is the only way to ensure constant filling of the vessels. You can see this difference in every picture.
Direct Injection Technology
The worldwide unique DIT technology makes it possible for you to always have the desired CO2 gas volume and pressure available without waiting time.
The CO2 gas is taken directly from the gas cylinder without any bypasses. Precision valves ensure exact dosing and maximum safety when injecting the CO2 contrast agent.
MAX RANGE
Largest range of pressure and volume
Over 30 years, it has been shown that for good visualization of large vessels, large pressure and large volume are important. For imaging small vessels, on the other hand, a small pressure and a small volume are important.
With MAX Range, we provide you injection parameters that have been proven and published in the literature.
Intelligent Continuous Flow
This ICF Technology is available exclusively from Malek Medical. This ICF Technology uses a patented and award-winning control technology. This ensures that a constant CO2 gas flow is generated during the entire injection. This is the only way to ensure constant filling of the vessels. You can see this difference in every picture.
Direct Injection Technology
The worldwide unique DIT technology makes it possible for you to always have the desired CO2 gas volume and pressure available without waiting time.
The CO2 gas is taken directly from the gas cylinder without any bypasses. Precision valves ensure exact dosing and maximum safety when injecting the CO2 contrast agent.
CO₂ Contrast Agent for Angiography
CO2 Contrast Agent
For perfect imaging in automated CO₂ angiography.
Supply advantages:
- Contrast agent supply for at least 200 patients
- Simplest cylinder exchange
- Special approval for angiography with carbon dioxide
| Model | CO₂ Contrast Agent |
| Intended Purpose | Angiography (DSA) |
| Contrast Agent | CO2 |
| Class /42/EWG Appendix II and MEDDEV | IIa |
| Purity | > 99,5% Vol. |
| Medical Product | YES |
| Quantity | > 200 Patients |
| Quality requirements | European Pharmacopoeia |
| Reload-Time with Gas Heating | 2 sec |
| Injection Temperature | 36°C |
| Injection Volume | 0 ccm – 200 ccm |
| Injection Pressure | 0 mbar – 1400 mbar |

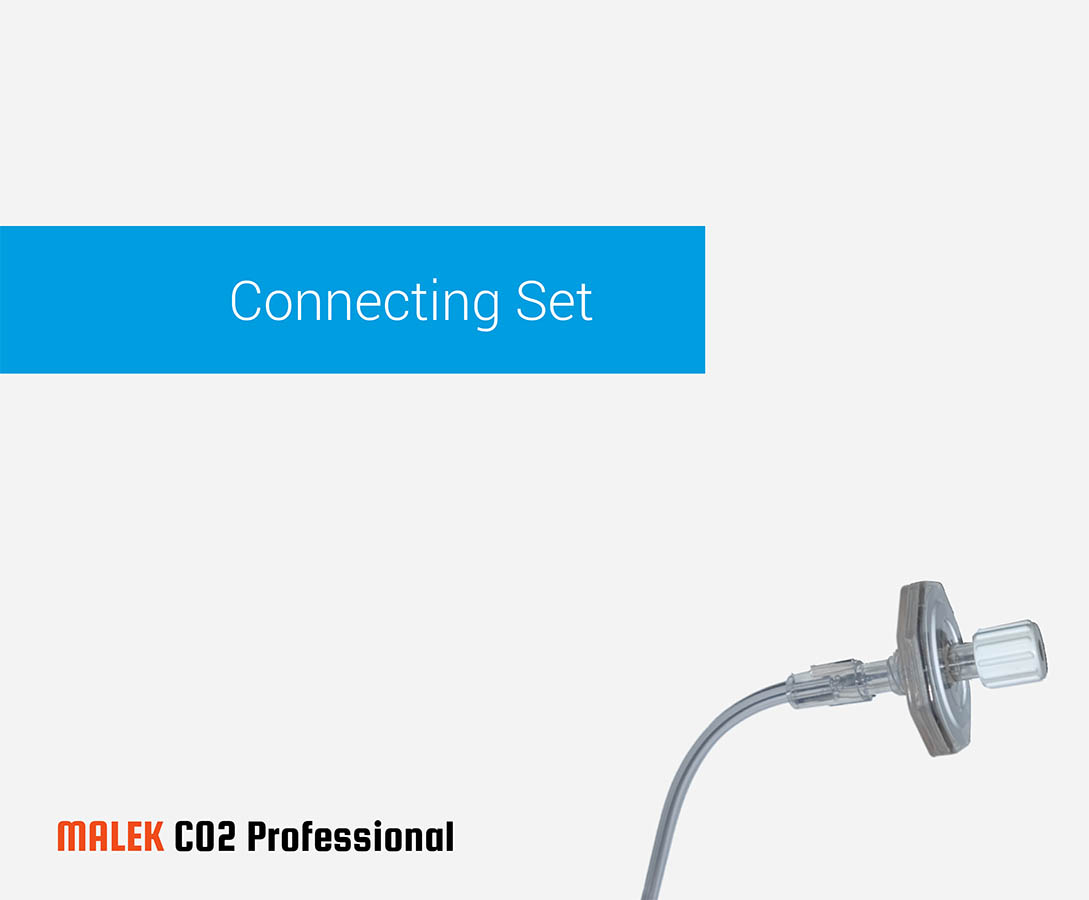

Connecting Set for Angiography, DSA
CO2 Connecting Set
The CO₂ connection set connects the CO2 injector to the application system selected by the user. It is used to transport and filter medical carbon dioxide (CO2). The two filters that are integrated in the CO2 connection set retain bacteria, particles, germs and aerosols that are larger than 0.1 μm. The backflow valve and hydrophobic membrane protect the
CO2 injector from possible backflow of fluids such as patient blood. A female (LLw) luer lock connector acts as the inlet and a male (LLm) luer lock connector acts as the outlet.
Advantages:
- Single-use product
- double safety (two filters)
- standardized Luer-Lock connector
- Backflow valve
| Model | CO₂ Connecting Set |
| Intended Purpose | Angiography (DSA) |
| Contrast Agent | CO₂ |
| Class /42/EWG Appendix II and MEDDEV | IIa |
| Backflow Valve | YES |
| Sterile Filter | 2 Piece |
| Filtering capacity | 0,2µ |
| Length | 75cm |
| Interchangeable | YES |
| Injection Temperature | 36°C |
| Injektion Volume | 0 ccm – 200 ccm |
| Injekction Pressure | 0 mbar – 1400 mbar |
Consulting CO2 Angiography – CO2 Professional
Consulting
We have been in the market with automated injection systems for over 30 years and offer you the expertise you expect.
Put us to the test!
Advantages:
- Consulting directly from experts
- 30 years of experience in automated CO₂ DSA.
- 24/7 availability
Service for Contrast Agent Injector INSPECT 3005R
Service
During maintenance, all safety-relevant wear parts are replaced. This is followed by recalibration of the injector. Once this has been done, the safety check is carried out. You will receive a detailed report on this.
The service is realized at our company, Malek Medica GmbH in Wismar. For easy shipping, we have designed the INSPECT 3005R in a way that the complete technology is located in the injector head.
Advantages:
- Directly from the manufacturer
- 24/7 Availability
- Shortest Downtimes
Safety Check for Contrast Agent Pump INSPECT 3005R
Safety Check
The safety check is a periodic technical check prescribed for operators of medical devices. In medical technology, the safety check is a procedure for determining the safety of an active, non-implantable medical device. The aim of this measure is the timely detection of device defects and risks for patients, users or third parties.
Advantages:
- safety check directly by the manufacturer
- shortest downtimes
- worldwide unique expertise
- 24/7 availability
